# ![logo](media/EMS-ESP_logo_dark.png)

**EMS-ESP** is an open-source firmware for the Espressif ESP8266 and ESP32 microcontroller that communicates with **EMS** (Energy Management System) based equipment from manufacturers like Bosch, Buderus, Nefit, Junkers, Worcester and Sieger.

[![version](https://img.shields.io/github/release/proddy/EMS-ESP.svg?label=Latest%20Release)](https://github.com/proddy/EMS-ESP/blob/master/CHANGELOG.md)
[![release-date](https://img.shields.io/github/release-date/proddy/EMS-ESP.svg?label=Released)](https://github.com/proddy/EMS-ESP/commits/master)
[![license](https://img.shields.io/github/license/proddy/EMS-ESP.svg)](LICENSE)
[![travis](https://travis-ci.com/proddy/EMS-ESP.svg?branch=dev)](https://travis-ci.com/proddy/EMS-ESP)
[![Codacy Badge](https://api.codacy.com/project/badge/Grade/b8880625bdf841d4adb2829732030887)](https://app.codacy.com/app/proddy/EMS-ESP?utm_source=github.com&utm_medium=referral&utm_content=proddy/EMS-ESP&utm_campaign=Badge_Grade_Settings)
[![downloads](https://img.shields.io/github/downloads/proddy/EMS-ESP/total.svg)](https://github.com/proddy/EMS-ESP/releases)
[![Average time to resolve an issue](http://isitmaintained.com/badge/resolution/proddy/EMS-ESP.svg)](http://isitmaintained.com/project/proddy/EMS-ESP "Average time to resolve an issue")
[![Percentage of issues still open](http://isitmaintained.com/badge/open/proddy/EMS-ESP.svg)](http://isitmaintained.com/project/proddy/EMS-ESP "Percentage of issues still open")
<br/>
[![gitter](https://img.shields.io/gitter/room/EMS-ESP/EMS-ESP.svg)](https://gitter.im/EMS-ESP/community)

If you like **EMS-ESP**, please give it a star, or fork it and contribute!

[![GitHub stars](https://img.shields.io/github/stars/proddy/EMS-ESP.svg?style=social&label=Star)](https://github.com/proddy/EMS-ESP/stargazers)
[![GitHub forks](https://img.shields.io/github/forks/proddy/EMS-ESP.svg?style=social&label=Fork)](https://github.com/proddy/EMS-ESP/network)
[![donate](https://img.shields.io/badge/donate-PayPal-blue.svg)](https://www.paypal.com/paypalme/prderbyshire/2)

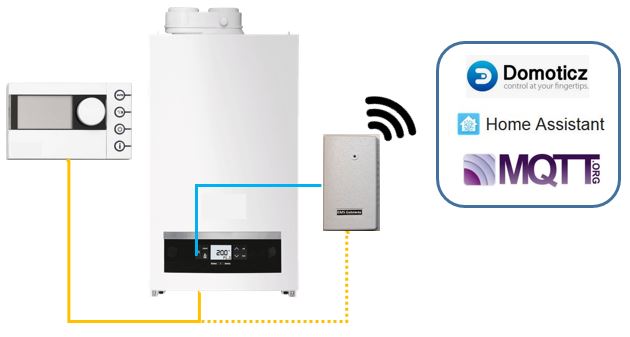

Note, EMS-ESP requires a small hardware circuit that can convert the EMS bus data to be read by the microcontroller. These can be ordered at https://bbqkees-electronics.nl.

<img src="media/gateway-integration.jpg" width=40%>

---

## **Features**

- Support for both ESP8266 and ESP32 modules
- A multi-user secure Web interface (based on React/TypeScript and Material-UI)
- A Console, accessible via Serial and Telnet for controlling and monitoring traffic
- Native support for Home Assistant [MQTT Discovery](https://www.home-assistant.io/docs/mqtt/discovery/)
- Can be run standalone as an independent Access Point or join an existing WiFi network
- Easy first-time configuration via a web Captive Portal
- Supporting over [70 EMS devices](https://emsesp.github.io/docs/#/Supported-EMS-Devices)  (boilers, thermostats, solar modules, mixing modules, heat pumps, gateways)

## **Screenshots**

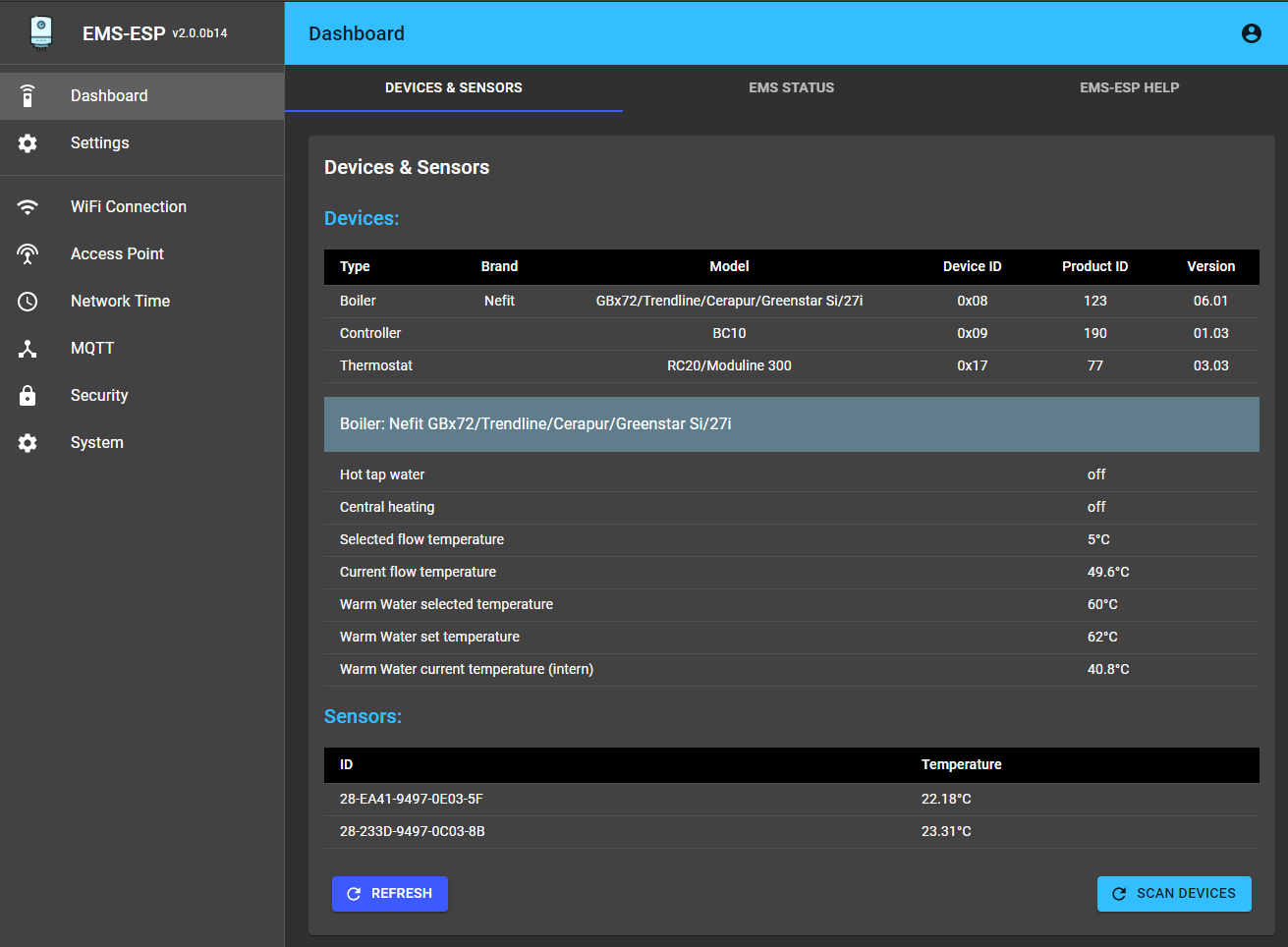

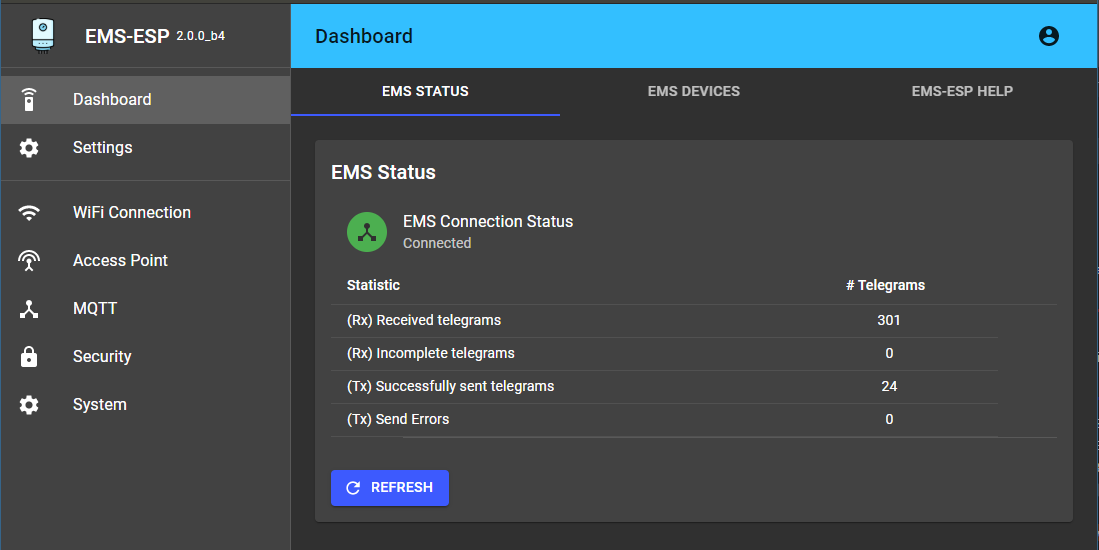

### The WebUI:

| | |
| --- | --- |
| <img src="media/web_settings.PNG"> | <img src="media/web_status.PNG"> |
| <img src="media/web_devices.PNG"> | <img src="media/web_mqtt.PNG"> |

### The Console:
<img src="media/console.PNG" width=80% height=80%>

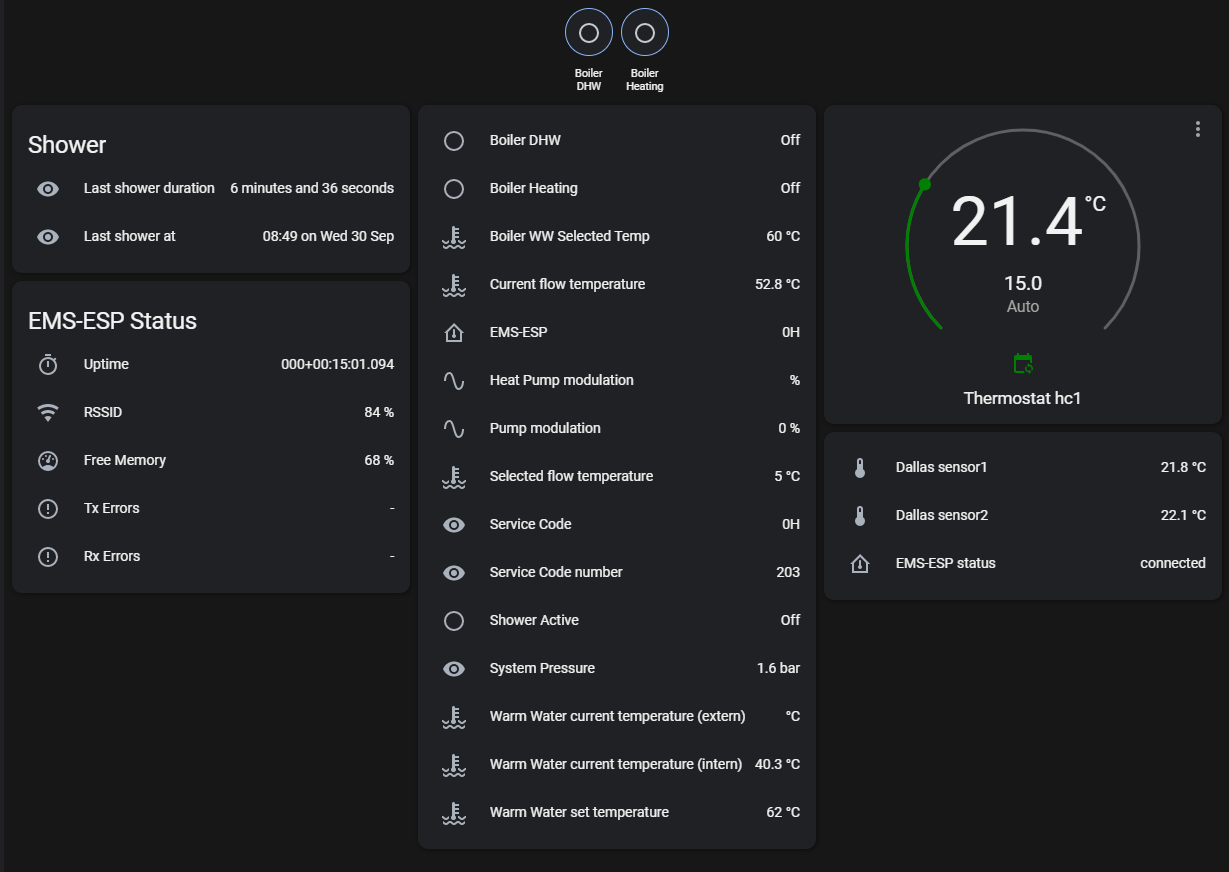

### Home Assistant integration:
<img src="media/ha_lovelace.PNG" width=80% height=80%>

## **Installing**

Refer to the [official documentation](https://emsesp.github.io/docs) to how to install the firmware and configure it. This is being constantly updated as new features and information are added.

* [Uploading a pre-built firmware build](https://emsesp.github.io/docs/#/Uploading-firmware)
* [Building the firmware from source code and flashing manually](https://emsesp.github.io/docs/#/Building-firmware)

## **Support Information**

If you're looking for support on **EMS-ESP** there are some options available:

### Documentation

* [Official EMS-ESP Documentation](https://emsesp.github.io/docs): For information on how to build and upload the firmware
* [FAQ and Troubleshooting](https://emsesp.github.io/docs/#/Troubleshooting): For information on common problems and solutions. See also [BBQKees's wiki](https://bbqkees-electronics.nl/wiki/gateway/troubleshooting.html)

### Support's Community

* [EMS-ESP Support Chat](https://gitter.im/EMS-ESP/community#): For support, troubleshooting and general questions. You have better chances to get fast answers from members of the community
* [Search in Issues](https://github.com/proddy/EMS-ESP/issues): You might find an answer to your question by searching current or closed issues

### Developers' Community

* [Bug Report](https://github.com/proddy/EMS-ESP/issues/new?template=bug_report.md): For reporting Bugs
* [Feature Request](https://github.com/proddy/EMS-ESP/issues/new?template=feature_request.md): For requesting features/functions
* [Troubleshooting](https://github.com/proddy/EMS-ESP/issues/new?template=questions---troubleshooting.md): As a last resort, you can open new *Troubleshooting & Question* issue on GitHub if the solution could not be found using the other channels. Just remember: the more info you provide the more chances you'll have to get an accurate answer

## **Contributing**

You can contribute to EMS-ESP by
- providing Pull Requests (Features, Fixes, suggestions).
- testing new released features and report issues on your EMS equipment.
- contributing to missing [documentation](https://emsesp.github.io/docs).

## **Credits**

A shout out to the people helping EMS-ESP get to where it is today...
- @MichaelDvP for all his amazing contributions and patience. Specifically the improved uart library, thermostat and mixing logic.
- @BBQKees for his endless testing and building the awesome circuit boards
- @susisstrolch for writing a first working version of the EMS bridge circuit which I used to design EMS-ESP version 0.1 back in August 2017
- Plus many more providing suggestions, PRs and the odd donation. Thanks!

## **License**

This program is licensed under GPL-3.0
