# ![logo](media/EMS-ESP_logo_dark.png)

**EMS-ESP** is an open-source firmware for the Espressif ESP8266 and ESP32 microcontroller that communicates with **EMS** (Energy Management System) based equipment from manufacturers like Bosch, Buderus, Nefit, Junkers, Worcester and Sieger.

This is the firmware for the ESP32. Compared to version 2 for the ESP8266, this release has

- Ethernet Support
- Pre-configured board layouts
- Writing values directly from the Web UI
- Mock API server for faster offline development
- Expose to more commands, via MQTT
- Improvements to Dallas sensors, Shower service

This version is the latest development track, where as v2 is in maintenance mode.

[![version](https://img.shields.io/github/release/emsesp/EMS-ESP32.svg?label=Latest%20Release)](https://github.com/emsesp/EMS-ESP32/blob/main/CHANGELOG.md)
[![release-date](https://img.shields.io/github/release-date/emsesp/EMS-ESP32.svg?label=Released)](https://github.com/emsesp/EMS-ESP32/commits/main)
[![license](https://img.shields.io/github/license/emsesp/EMS-ESP32.svg)](LICENSE)
[![Codacy Badge](https://app.codacy.com/project/badge/Grade/9441142f49424ef891e8f5251866ee6b)](https://www.codacy.com/gh/emsesp/EMS-ESP32/dashboard?utm_source=github.com&utm_medium=referral&utm_content=emsesp/EMS-ESP32&utm_campaign=Badge_Grade)
[![downloads](https://img.shields.io/github/downloads/emsesp/EMS-ESP32/total.svg)](https://github.com/emsesp/EMS-ESP32/releases)
[![chat](https://img.shields.io/discord/816637840644505620.svg?style=flat-square&color=blueviolet)](https://discord.gg/3J3GgnzpyT)

If you like **EMS-ESP**, please give it a star, or fork it and contribute!

[![GitHub stars](https://img.shields.io/github/stars/emsesp/EMS-ESP32.svg?style=social&label=Star)](https://github.com/emsesp/EMS-ESP32/stargazers)
[![GitHub forks](https://img.shields.io/github/forks/emsesp/EMS-ESP32.svg?style=social&label=Fork)](https://github.com/emsesp/EMS-ES32P/network)
[![donate](https://img.shields.io/badge/donate-PayPal-blue.svg)](https://www.paypal.com/paypalme/prderbyshire/2)

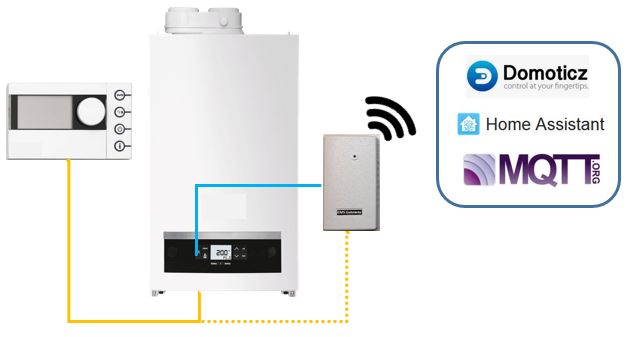

Note, EMS-ESP requires a small hardware circuit that can convert the EMS bus data to be read by the microcontroller. These can be ordered at <https://bbqkees-electronics.nl>.

<img src="media/gateway-integration.jpg" width=40%>

---

# **Features**

- Compatible with both ESP8266 and ESP32
- A multi-user secure web interface to change settings and monitor the data
- A console, accessible via Serial and Telnet for more monitoring
- Native support for Home Assistant via [MQTT Discovery](https://www.home-assistant.io/docs/mqtt/discovery/)
- Can run standalone as an independent WiFi Access Point or join an existing WiFi network
- Easy first-time configuration via a web Captive Portal
- Support for more than [70 EMS devices](https://emsesp.github.io/docs/#/Supported-EMS-Devices) (boilers, thermostats, solar modules, mixer modules, heat pumps, gateways)

## **Demo**

See a live demo on [here](https://ems-esp.derbyshire.nl). The data you see is static and any username/password is accepted.

# **Screenshots**

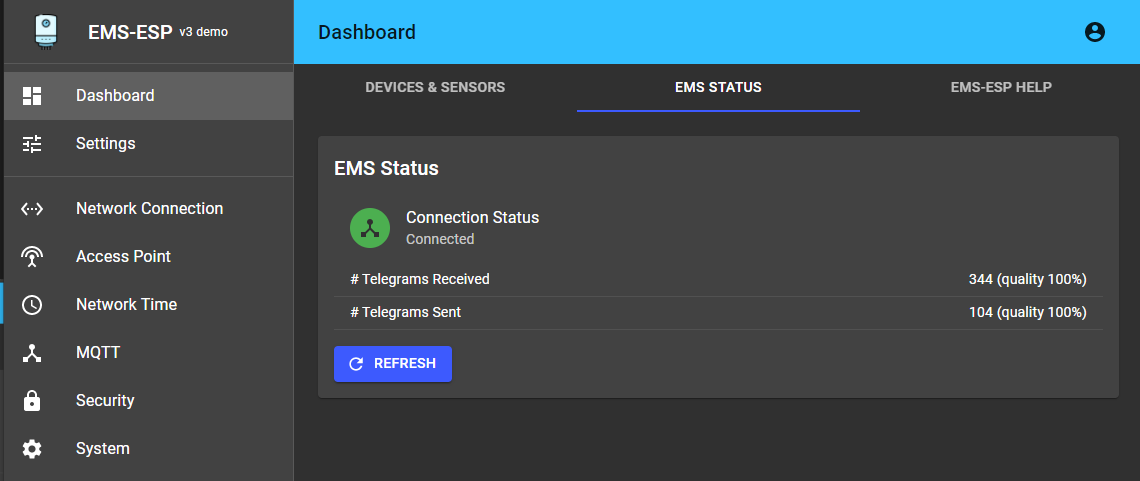

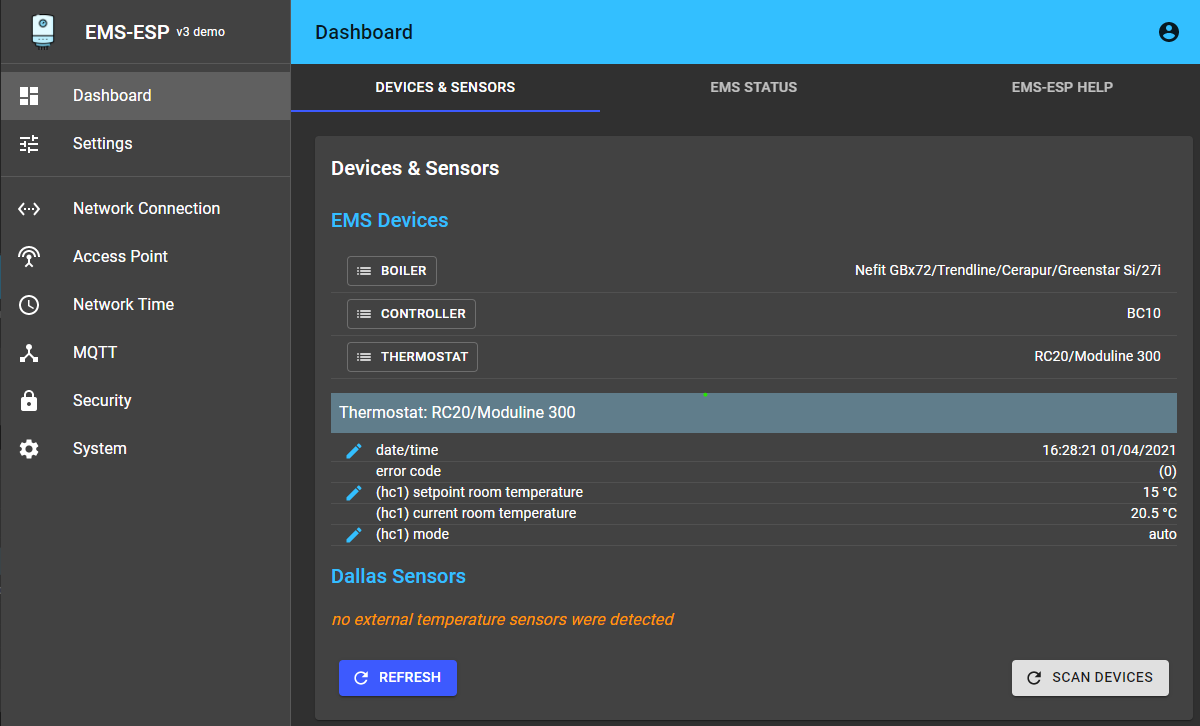

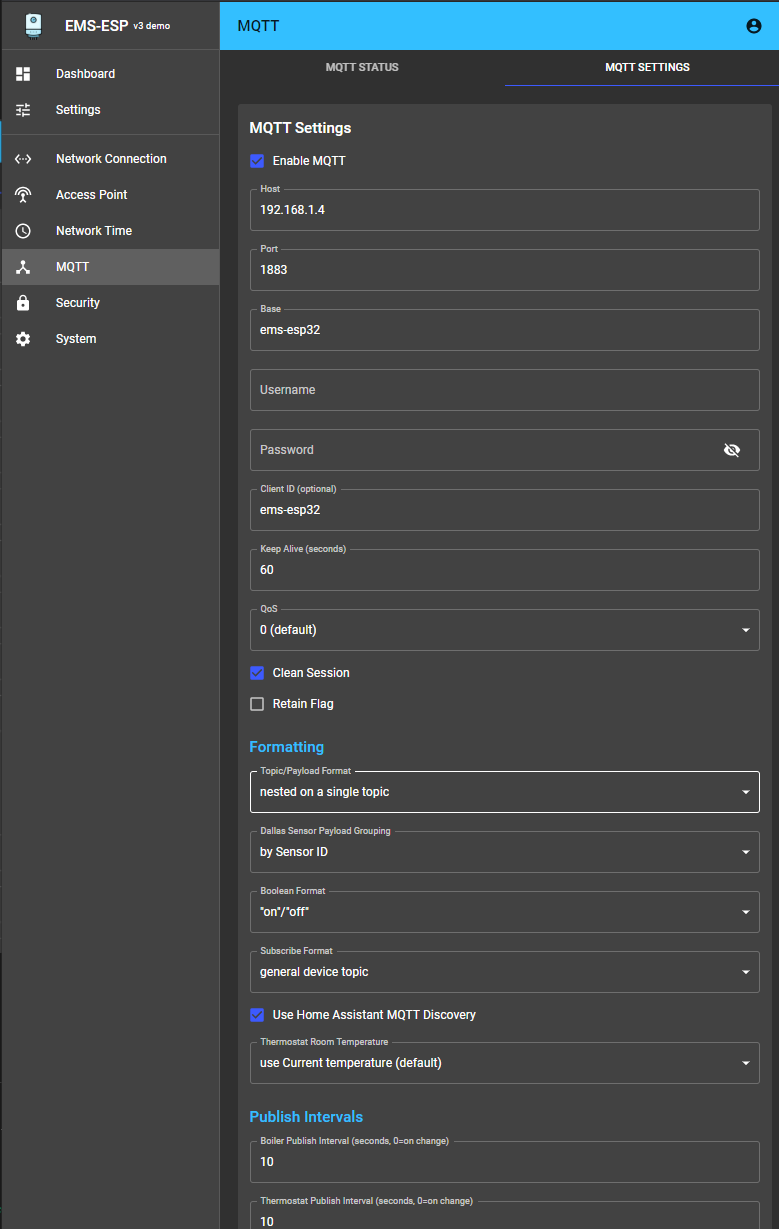

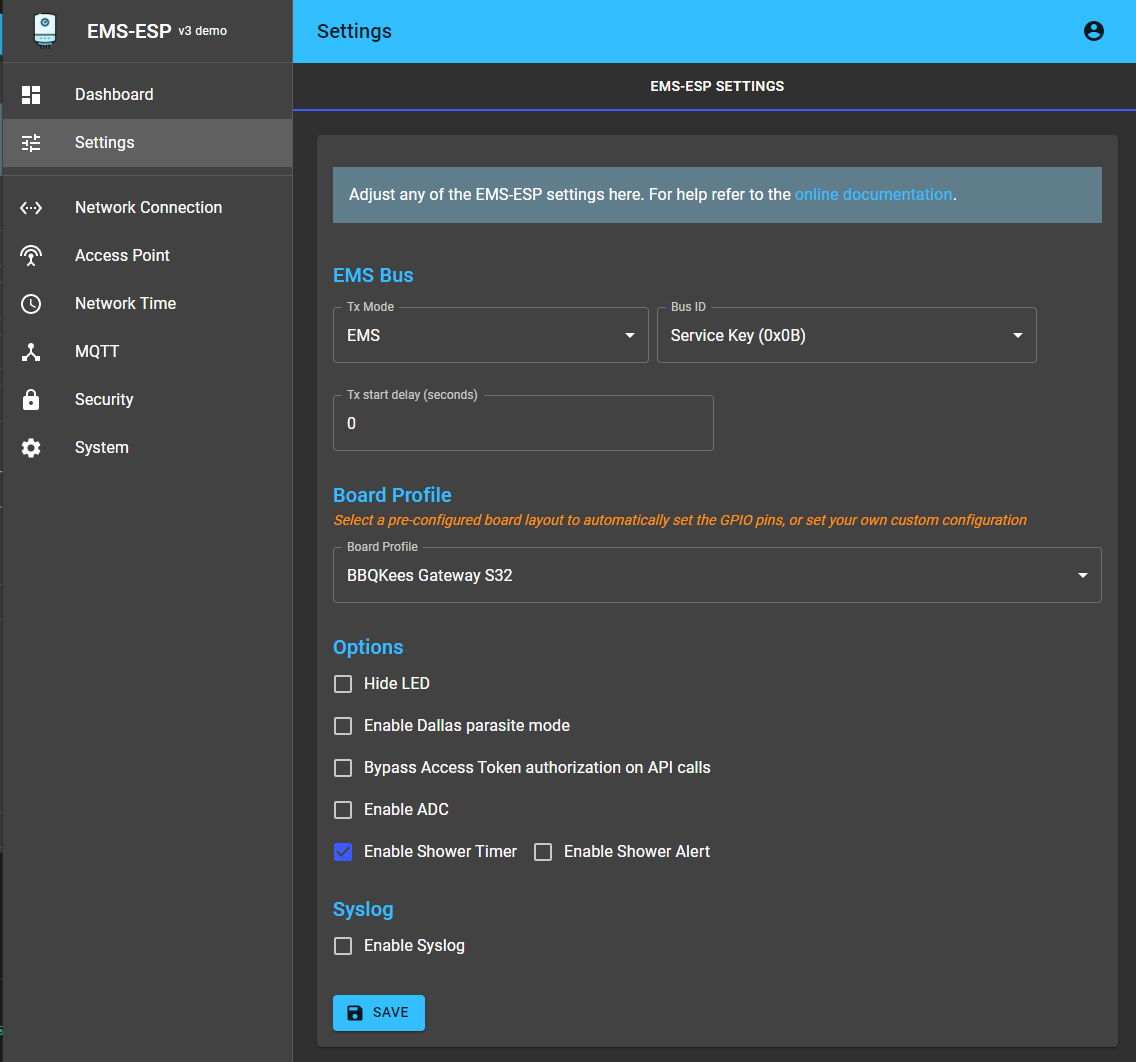

## Web Interface

|                                    |                                  |
| ---------------------------------- | -------------------------------- |
| <img src="media/web_settings.png"> | <img src="media/web_status.png"> |
| <img src="media/web_devices.png">  | <img src="media/web_mqtt.png">   |

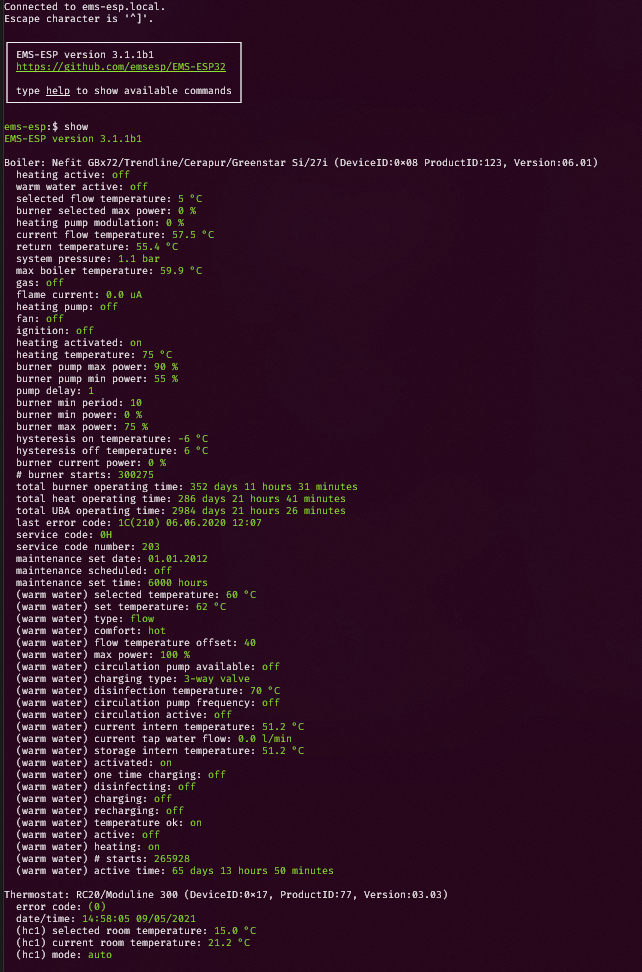

## Telnet Console

<img src="media/console.png" width=80% height=80%>

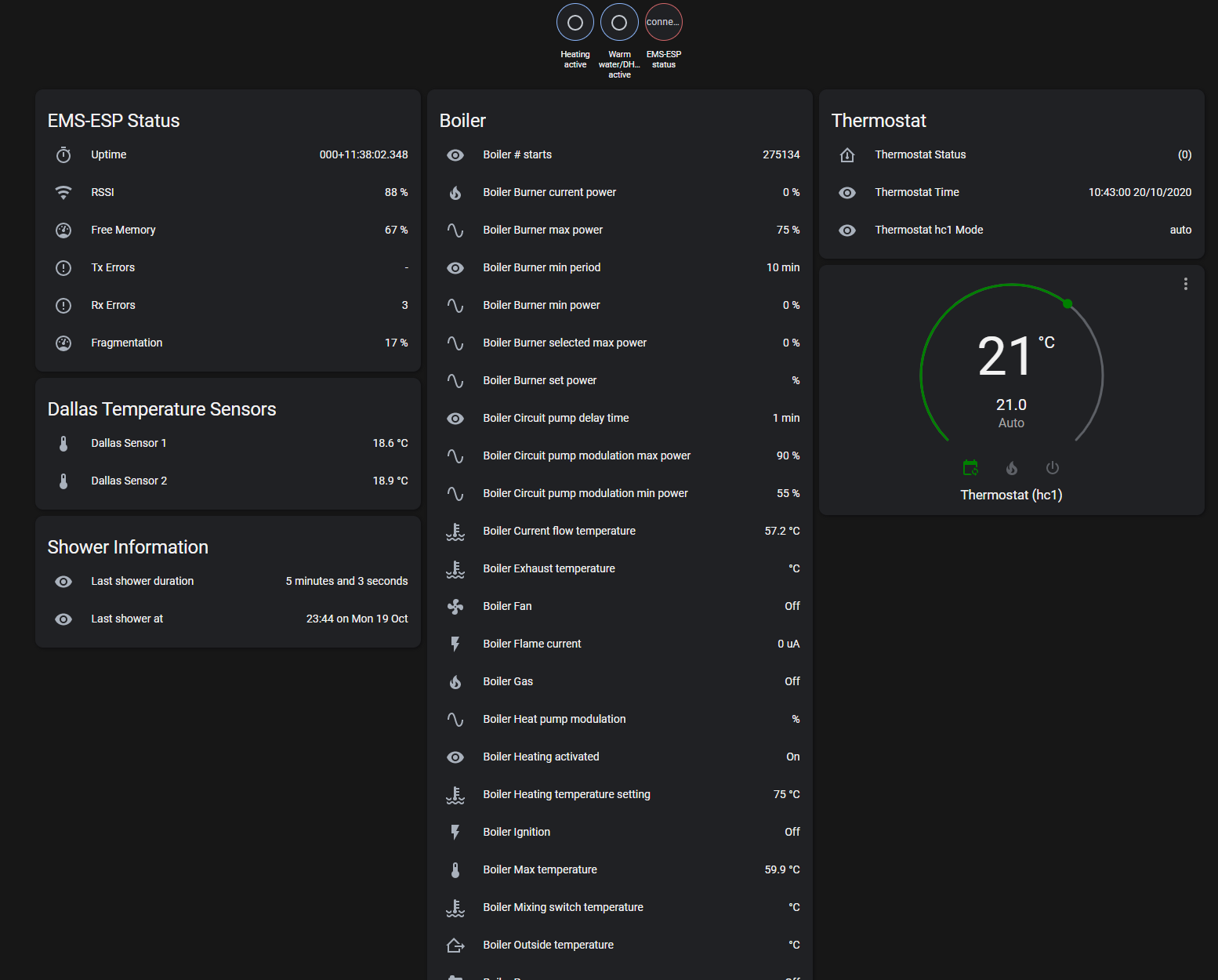

## In Home Assistant

<img src="media/ha_lovelace.png" width=80% height=80%>

# **Installing**

Refer to the [official documentation](https://emsesp.github.io/docs) to how to install the firmware and configure it. The documentation is being constantly updated as new features and settings are added.

You can choose to use an pre-built firmware image or compile the code yourself:

- [Uploading a pre-built firmware build](https://emsesp.github.io/docs/#/Uploading-firmware)
- [Building the firmware from source code and flashing manually](https://emsesp.github.io/docs/#/Building-firmware)

# **Support Information**

If you're looking for support on **EMS-ESP** there are some options available:

## Documentation

- [Official EMS-ESP Documentation](https://emsesp.github.io/docs): For information on how to build and upload the firmware
- [FAQ and Troubleshooting](https://emsesp.github.io/docs/#/Troubleshooting): For information on common problems and solutions. See also [BBQKees's wiki](https://bbqkees-electronics.nl/wiki/gateway/troubleshooting.html)

## Support Community

- [Discord Server](https://discord.gg/3J3GgnzpyT): For support, troubleshooting and general questions. You have better chances to get fast answers from members of the community
- [Search in Issues](https://github.com/emsesp/EMS-ESP32/issues): You might find an answer to your question by searching current or closed issues

## Developer's Community

- [Bug Report](https://github.com/emsesp/EMS-ESP32/issues/new?template=bug_report.md): For reporting Bugs
- [Feature Request](https://github.com/emsesp/EMS-ESP32/issues/new?template=feature_request.md): For requesting features/functions
- [Troubleshooting](https://github.com/emsesp/EMS-ESP32/issues/new?template=questions---troubleshooting.md): As a last resort, you can open new _Troubleshooting & Question_ issue on GitHub if the solution could not be found using the other channels. Just remember: the more info you provide the more chances you'll have to get an accurate answer

# **Contributors ✨**

EMS-ESP is a project originally created by [proddy](https://github.com/proddy) with the main contributors and owners:

<!-- ALL-CONTRIBUTORS-LIST:START - Do not remove or modify this section -->
<!-- prettier-ignore-start -->
<!-- markdownlint-disable -->
<table>
  <tr>
    <td align="center">
    <a href="https://derbyshire.nl"><img src="https://avatars.githubusercontent.com/u/1230712?v=3?s=100" width="100px;" alt=""/>
    <br/><sub><b>proddy</b></sub></a>
    <br/>
    </a> <a href="https://github.com/emsesp/EMS-ESP/commits?author=proddy" title="v2 Commits">v2</a>
    <a href="https://github.com/emsesp/EMS-ESP32/commits?author=proddy" title="v3 Commits">v3</a>
    </td>
    <td align="center">
    <a href="https://github.com/MichaelDvP"><img src="https://avatars.githubusercontent.com/u/59284019?v=3?s=100" width="100px;" alt=""/><br /><sub><b>MichaelDvP</b></sub></a><br /></a> <a href="https://github.com/emsesp/EMS-ESP/commits?author=MichaelDvP" title="v2 Commits">v2</a>
    <a href="https://github.com/emsesp/EMS-ESP32/commits?author=MichaelDvP" title="v3 Commits">v3</a>
    </td>

  </tr>
</table>
<!-- markdownlint-restore -->
<!-- prettier-ignore-end -->

You can also contribute to EMS-ESP by

- providing Pull Requests (Features, Fixes, suggestions)
- testing new released features and report issues on your EMS equipment
- contributing to missing [Documentation](https://emsesp.github.io/docs)

# **Libraries used**

- [esp8266-react](https://github.com/rjwats/esp8266-react) by @rjwats for the framework that provides the  Web UI
- [uuid-\*](https://github.com/nomis/mcu-uuid-console) from @nomis. The console, syslog, telnet and logging is based on these libraries
- [ArduinoJson](https://github.com/bblanchon/ArduinoJson)
- [AsyncMqttClient](https://github.com/marvinroger/async-mqtt-client) for MQTT, with modifications from @bertmelis
- ESPAsyncWebServer and AsyncTCP for the Web and TCP backends, with custom modifications for performance

# **License**

This program is licensed under GPL-3.0
