EMS-ESP is a open-source system to communicate with EMS (Energy Management System) based boilers, thermostats and other modules from manufacturers like Bosch, Buderus, Nefit, Junkers and Sieger.

The code is written for the Espressif ESP8266 microcontroller and supports a telnet console for real-time monitoring and configuration and customizable MQTT support for publishing the information to a home automation system such as Home Assistant or Domoticz.

Please reference the Wiki for further details and instructions on how to build and configure the firmware.

---

Features

A web interface for easy configuration and real-time monitoring of the EMS bus

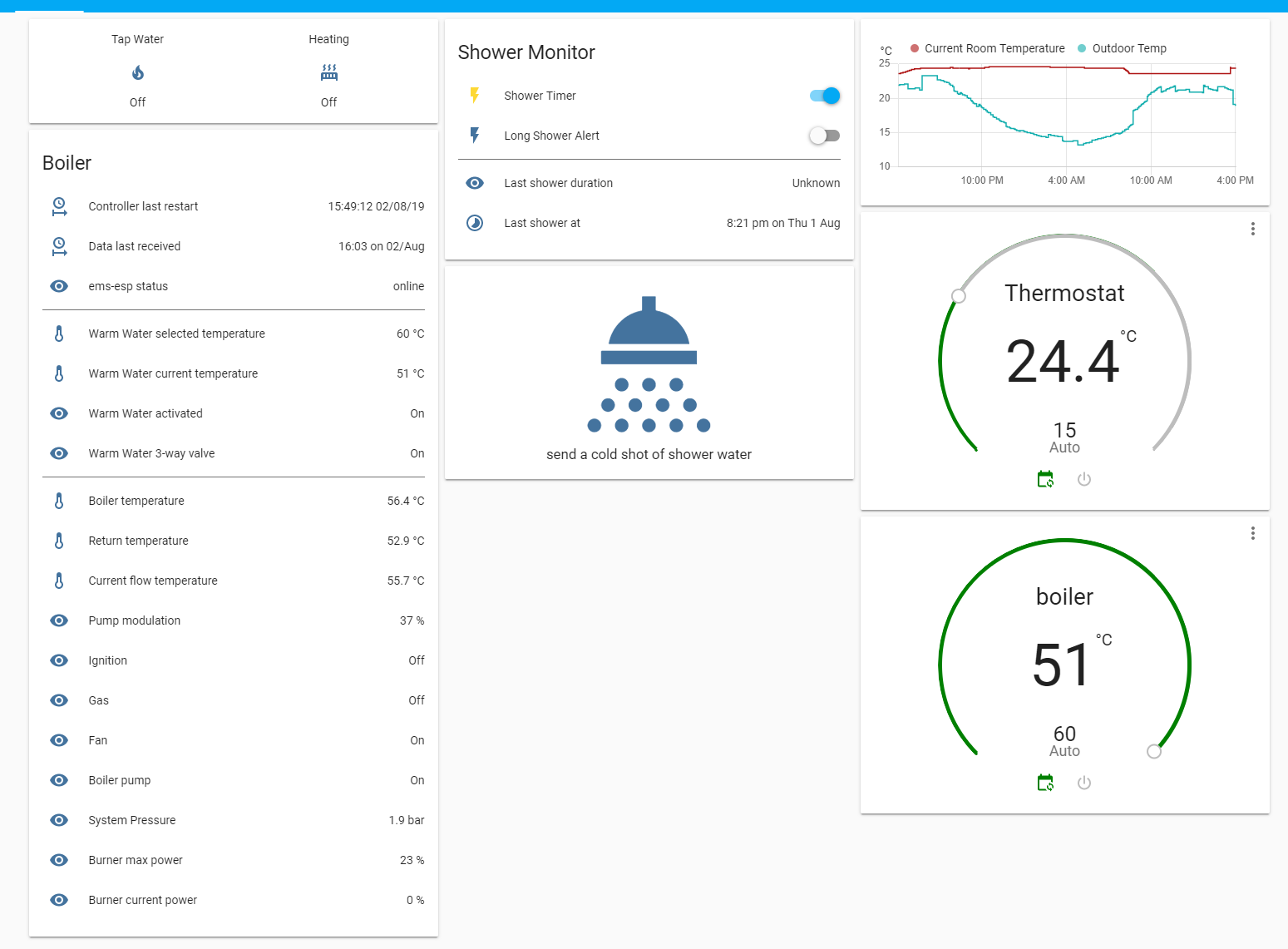

MQTT support for Home Assistant and Domoticz

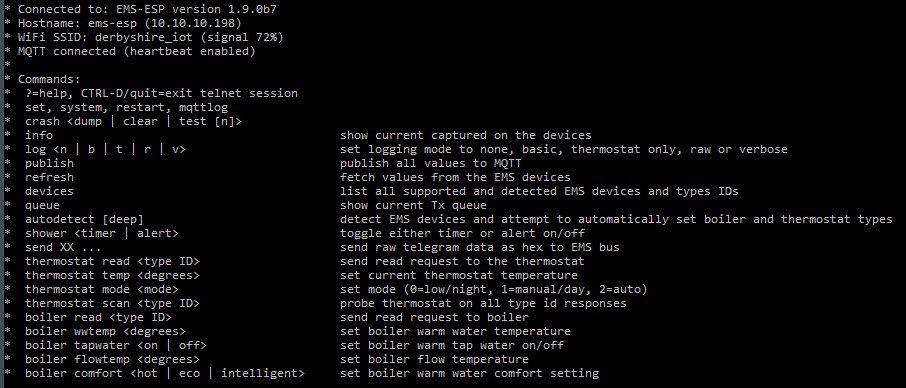

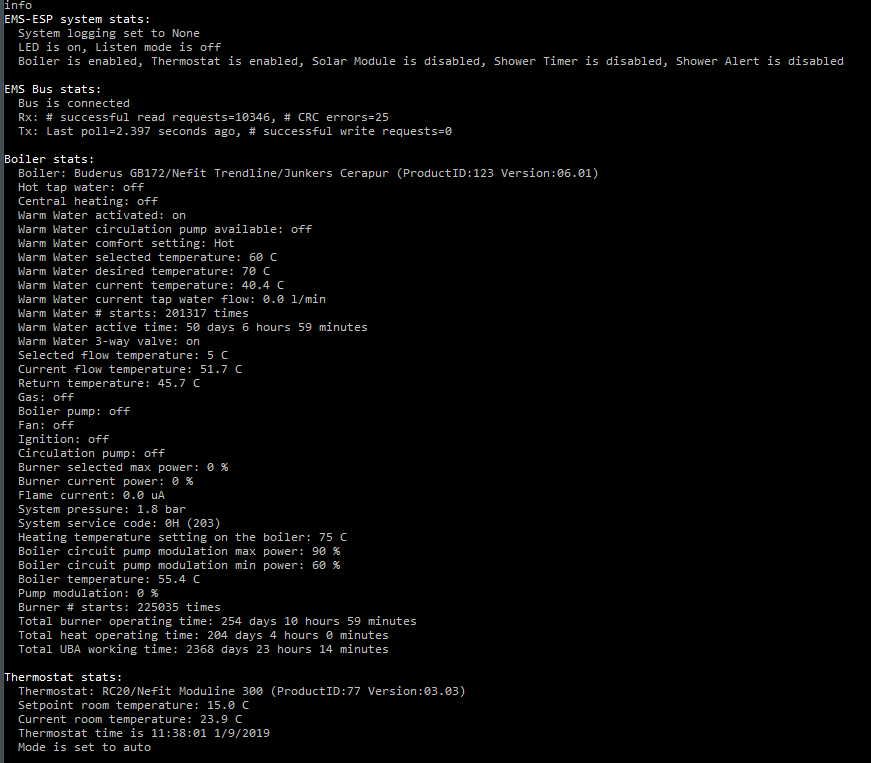

Telnet for advanced configuration and verbose traffic logging

Supported EMS devices

More than 50 EMS 1.0 and 2.0 devices are currently supported. See the complete list.

---

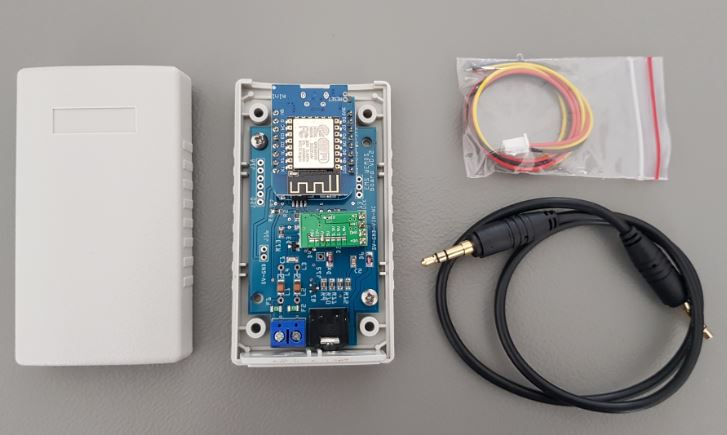

Native compatibility with bbqkees' EMS Gateway

All firmware versions fully support BBQKees' EMS Gateway board with integrated Wemos D1 ESP8266.
