EMS-ESP32/README.md

EMS-ESP version 2.0

Breaking changes

• MQTT base has been removed. The hostname is only used
• refresh command renamed to fetch
• have to 'wifi reconnect' after changing wifi in console

New Features in v2

• A new web interface using React and TypeScript that's now secure as each URL endpoint is protected by issuing a JWT which is then sent using Bearer Authentication. Using a Captive Portal in AP mode or connecting to a local wifi network.

• A new console. Like in version 1.9 it works with both Serial and Telnet but with a more intuitive Linux shell like behavior. It supports multiple connections and has basic security to prevent any changes to EMS-ESP. A full list of commands is below, here are the key ones:

  • help lists the commands and keywords
  • some commands take you into a new context, a bit like a sub-menu. e.g. system, thermostat. Use help to show which commands this context has and exit or CTRL-D to get back to the root.
  • To change a setting use the set command. Typing set shows the current settings.
  • show shows the data specific to the which context you're in.
  • su to switch to Admin which enables more commands such as most of the set commands. The default password is "ems-esp-neo" which can be changed with passwd from the system menu. When in Admin mode the command prompt switches from $ to #.
  • log sets the logging level. log off disables logging. Use log debug for debugging commands and actions.
  • watch will output the incoming Rx telegrams to the console. You can also show these in its 'raw' data format and also watch a particular ID.
  • CTRL-D to exit, CTRL-U to remove line, TAB to auto-complete

• There is no "serial mode" anymore like with version 1.9. When the Wifi cannot connect to the SSID it will automatically enter a "safe" mode where the Serial console is activated automatically (baud 115200). Note Serial is always available on the ESP32 because it has multiple UARTs.

• The onboard LED behaves like in 1.9. A solid LED means good connection and EMS data is coming in. A slow pulse means either the WiFi or the EMS bus is not connected yet. A very fast pulse is when the system is booting up and configuring itself, which typically takes 5 seconds.

• Built to work with both EMS8266 and ESP32

• Extended MQTT to use MQTT discovery on Home Assistant.

• For debugging there is an offline mode where the code can be compiled and executed standalone without uploading to an ESP controller. Use make (based off GNUMakefile).

Uploading the firmware

• If you're not using PlatformIO, use the command-line and Python. You can download Python from https://www.python.org/downloads/. Make sure you also get:

  • esptool, install using the command pip install esptool
  • and for OTA updates later, espota from https://github.com/esp8266/Arduino/blob/master/tools/espota.py

• Grab the latest firmware binary from https://github.com/proddy/EMS-ESP/releases/tag/travis-v2-build

• Uploading directly via USB.

  For ESP8266: esptool.py -p <COM PORT> -b 921600 write_flash 0x00000 <firmware.bin>

  For ESP32: esptool.py --chip esp32 --port "COM6" --baud 921600 --before default_reset --after hard_reset write_flash -z --flash_mode dio --flash_freq 40m --flash_size detect 0x1000 XX\.platformio\packages\framework-arduinoespressif32\tools\sdk\bin\bootloader_dio_40m.bin 0x8000 XX\.pio\build\esp32\partitions.bin 0xe000 XX\.platformio\packages\framework-arduinoespressif32\tools\partitions\boot_app0.bin 0x10000 <firmware.bin>

• Uploading over WiFi: espota.py --debug --progress --port 8266 --auth ems-esp-neo -i <IP address> -f <firmware.bin>

Setting EMS-ESP up for the first time

• Connect to the Access Point called ems-esp using the WPA password ems-esp-neo. When you see the captive portal sign-in with username admin and password admin. Set the WiFi credentials and restart the ESP.
• When it connects to your wifi network you can use either the Web UI to further configure the other settings or using Telnet. If using the Telnet console refer to the full set of commands below. To change any settings you need to be admin which can be accessed via the su command. The password here is the same as the JWT secret from the Web UI, default ems-esp-neo.
• First thing to check is if Tx is working. Use show ems and if you have a large number of Tx fails try changing the Tx Mode using set tx_mode as admin. Typical values are 1 for EMS1.0, 2 for EMS2.0/EMS+ and 3 for Heatronics.

List of console commands

common commands available in all contexts:
  exit
  help
  log [level]
  watch <on | off | raw> [ID]
  su

(from the root)
  set
  fetch
  system (enters a context)
  boiler (enters a context)
  thermostat (enters a context)
  scan devices [deep]
  send telegram <"XX XX ...">
  set bus_id <device ID>
  set tx_mode <n>
  show
  show devices
  show ems
  show values

system
  set
  show
  show mqtt
  show users
  passwd
  restart
  set wifi hostname <name>
  set wifi password
  set wifi ssid <name>
  wifi reconnect
  pin <gpio> [data]

boiler
  read <type ID>
  call [cmd] [n] (cmd's: comfort wwactivated wwtapactivated wwonetime wwcirculation flowtemp wwtemp burnmaxpower burnminpower boilhyston boilhystoff burnperiod pumpdelay)

thermostat
  set
  set master [device ID]
  read <type ID>
  call [cmd] [n] (cmd's: wwmode control mode holiday pause party datetime minexttemp clockoffset calinttemp display building language remotetemp temp nighttemp daytemp nofrosttemp ecotemp heattemp summertemp designtemp offsettemp holidaytemp)

---

mqtt commands

commands must be written as {"cmd":<cmd> ,"data":<data>, "id":<n> }. The id can be replaced with hc for some devices.

*boiler_cmd*
  comfort <hot, eco, intelligent>
  flowtemp <degrees>
  wwtemp <degrees>
  boilhyston <degrees> (negative value)
  boilhystoff <degrees> (positive value)
  burnperiod <minutes>
  burnminpower <%>
  burnmaxpower <%>
  pumpdelay <minutes>

*thermostat_cmd*
--- without hc ---
  wwmode <off | on | auto>
  calinttemp <degrees>
  minexttemp <degrees>
  building <light | medium | heavy>
  language <n> (0=de, 1=nl, 2=fr, 3=it) only RC30
  display <n>  (0=int temp, 1= int set, 2=ext. temp, 3=burner, 4=ww, 5=mode, 6=time, 7=date, 8=smoke) only RC30
  clockoffset <seconds>    (only RC30)
--- with hc ---
  mode <auto | night | day | nofrost | heat | eco>
  temp <degrees>
  nighttemp <degrees>
  daytemp <degrees>
  nofrosttemp <degrees>
  ecotemp <degrees>
  heattemp <degrees>
  summertemp <degrees>
  designtemp <degrees>
  offsettemp <degrees>
  holidaytemp <degrees>
  remotetemp <degrees>
  control <0 | 1 | 2>
  pause <hours>
  party <hours>
  holiday <dd.mm.yyyy-dd.mm.yyyy>
  date <NTP | hh:mm:ss-dd.mm.yyyy-dw-dst>

*system_cmd*
  send <"0B XX XX ..">
  pin <gpio> <on|off|1|0|true|false>

Basic Design Principles

• The core services like telnet, logging and shell are based off the libraries from @nomis. I also adopted his general design pattens such as making everything as asynchronous as possible so that no one operation should starve another operation of it's time to execute (https://isocpp.org/wiki/faq/ctors#static-init-order).
• All EMS devices (e.g. boiler, thermostat, solar modules, mixing units etc) are derived from a factory base class and each class handles its own registering of telegram and mqtt handlers. This makes the EMS device code easier to manage and we can extend with new telegrams types and features.

Things to tidy up in code later

• Replace vectors of class objects with shared pointers and use emplace_back since it instantiates during construction. It may have a performance gain.
• Add real unit tests using platformio's pio-remote test bed.
• See if it's easier to use timers instead of millis() based timers, using polledTimeout.
• Port over to ESP-IDF. The Arduino SDK is showing its limitations

Customizing the Web UI

The Web is based off Rick's awesome esp8266-react framework. These are the files that are modified:

interface:

• .env project name and project path to ems-esp
• .env.development CORS URL

interface/public:

• app/manifest.json ems-esp name
• index.html ems-esp name
• app/icon.png 256x256 PNG
• favicon.ico replaced

interface/src:

• CustomMuiTheme.tsx colors for dark mode
• interface/src/wifi/WifiSettingsController.tsx rename esp8266-react

interface/src/project:

• ProjectRouting.tsx removed demo, added paths to ems-esp/status, ems-esp/settings and *
• DemoProject.tsx remove /demo/ and changed title, renamed to EMSESP.tsx
• ProjectMenu.tsx title change, added /ems-esp/settings
• DemoInformation.tsx removed file
• types.ts add variables
• added all custom files starting with EMSESP*

interface/src/mqtt:

• types.ts added mqtt_fails
• MqttStatusForm.tsx added MQTT Publish Errors
• MqttStatus.ts added function mqttPublishHighlight

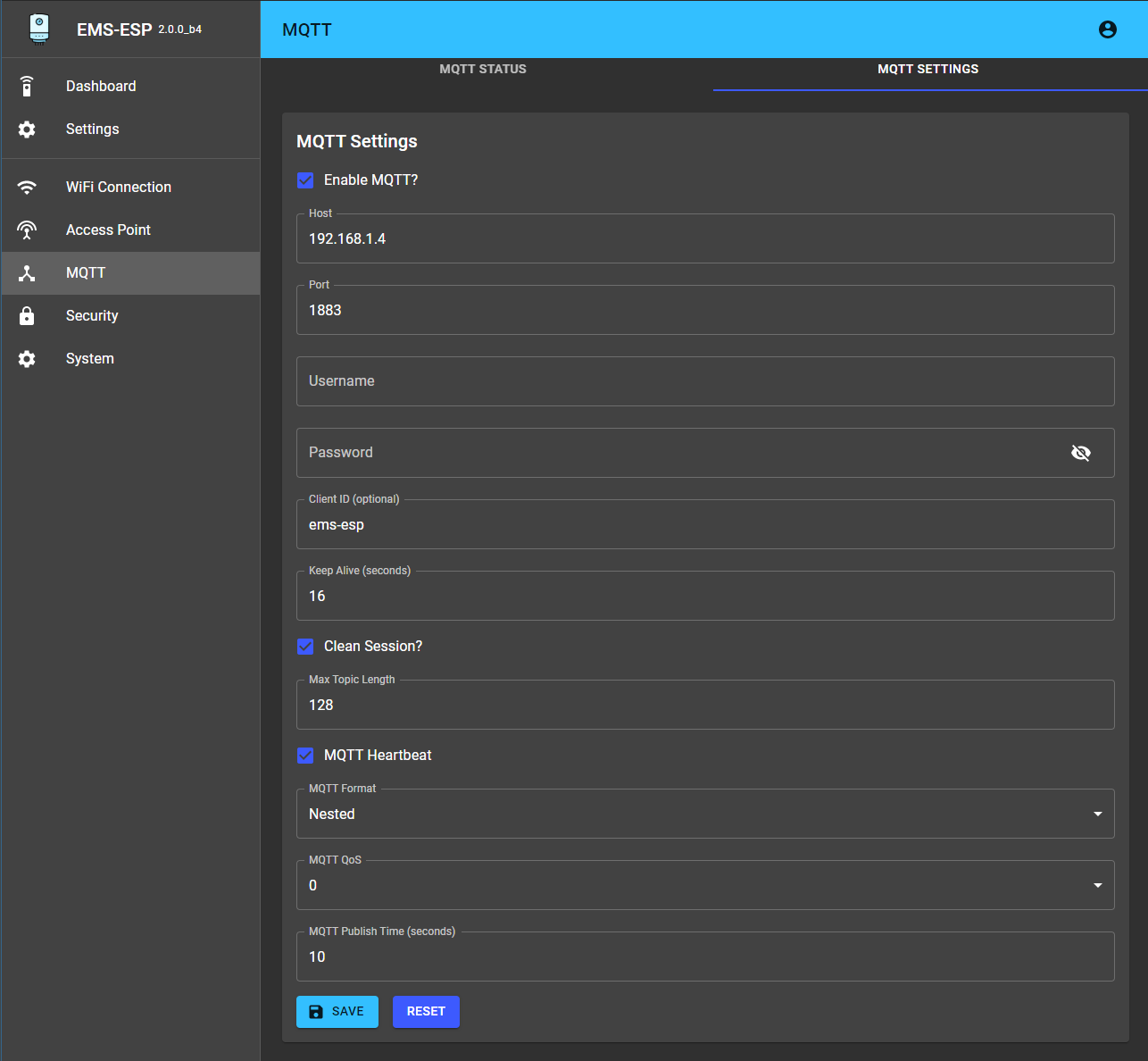

• MqttSettingsForm.tsx added publish time, qos, format

interface/src/authentication:

• AuthenticationWrapper.tsx commented out features.security because we added version
• AuthenticationContext.tsx added version
• MqttSettingsForm.tsx added publish time, qos, format

interface/src/components:

• MenuAppBar.tsx added version to toolbar

interface/src/system:

• types.ts added uptime and free_mem
• SystemStatusForm.tsx added system uptime, % free mem

lib/framework:

• SystemStatus.h added #include <LittleFS.h>, #include <uuid/log.h>, #include "../../src/system.h"
• SystemStatus.cpp added LittleFS.info(fs_info); root["uptime"], root["free_mem"]
• Commented out all Serial.print's in all files
• MqttStatus.h added #include "../../src/mqtt.h"
• MqttStatus.cpp added root["mqtt_fails"]
• SecuritySettingsService.cpp added version to the JWT payload
• SecuritySettingsService.h #include "../../src/version.h"
• WiFiSettingsService.cpp added WiFi.setOutputPower(20.0f), moved setHostname
• OTASettingsService.h added #include "../../src/system.h"
• OTASettingsService.cpp added call to emsesp::System::upload_status(true)
• features.ini: -D FT_NTP=0
• platformio.ini using our own version
• factory_settings.ini modified with ems-esp-neo as password and ems-esp everywhere else

UI customization links:

• icons: https://material-ui.com/components/material-icons/
• colors: https://material-ui.com/customization/color/
• tables: https://material-ui.com/components/tables/#dense-table
