EMS-ESP32/docs/Home-Assistant.md

Example Dashboard

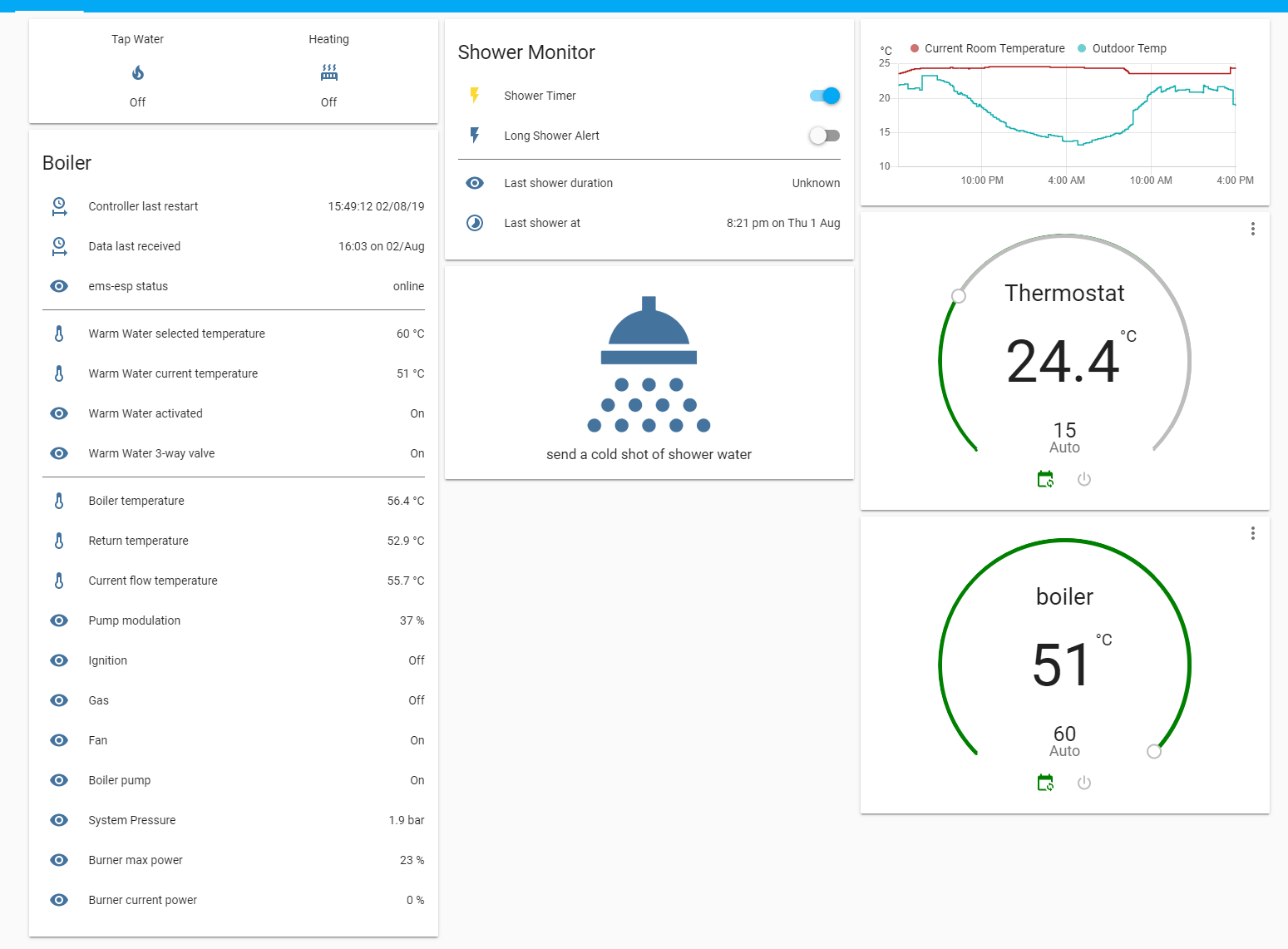

In the doc folder there is a basic template for a HA dashboard which looks like:

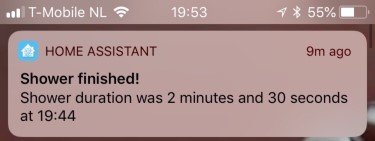

and the alerts on an iOS/Android device using PushBullet, PushOver or any notification service would look like:

You can find the .yaml configuration files under doc/ha. See also this HA forum post. Make sure you include these YAML files in your configuration.yaml file, e.g.

script: !include script.yaml
sensor: !include sensor.yaml
switch: !include switch.yaml
notify: !include notify.yaml
climate: !include climate.yaml
automation: !include automation.yaml
binary_sensor: !include binary_sensor.yaml

Supporting multiple thermostat heating circuits

Create a component for each, using the HC number appended to the end of the topics. For example

- platform: mqtt
  name: Thermostat HC2
  modes:
    - "auto"
    - "heat"
    - "off"
  mode_command_topic: "home/ems-esp/thermostat_cmd_mode2"
  temperature_command_topic: "home/ems-esp/thermostat_cmd_temp2"

  mode_state_topic: "home/ems-esp/thermostat_data"
  current_temperature_topic: "home/ems-esp/thermostat_data"
  temperature_state_topic: "home/ems-esp/thermostat_data"

  mode_state_template: "{% if value_json.hc2.mode == 'manual' %} heat {% else %} {{value_json.hc2.mode}} {% endif %}"

  current_temperature_template: "{{ value_json.hc2.currtemp }}"
  temperature_state_template: "{{ value_json.hc2.seltemp }}"

  temp_step: 0.5

Sending out a heartbeat

Thanks to @S-Przybylski for these additions.

sensors.yaml:

###################################################
# EMS-ESP Statistics - heartbeat
###################################################
- platform: mqtt
  state_topic: 'home/ems-esp/heartbeat'
  name: 'ems_esp_wifi'
  unit_of_measurement: '%'
  value_template: '{{ value_json.rssid }}'
  qos: 1
  availability_topic: 'home/ems-esp/status'
  payload_available: "online"
  payload_not_available: "offline"

- platform: mqtt
  state_topic: 'home/ems-esp/heartbeat'
  name: 'ems_esp_load'
  unit_of_measurement: '%'
  value_template: '{{ value_json.load }}'
  qos: 1
  availability_topic: 'home/ems-esp/status'
  payload_available: "online"
  payload_not_available: "offline"

- platform: mqtt
  state_topic: 'home/ems-esp/heartbeat'
  name: 'ems_esp_freemem'
  unit_of_measurement: '%'
  value_template: '{{ value_json.freemem }}'
  qos: 1
  availability_topic: 'home/ems-esp/status'
  payload_available: "online"
  payload_not_available: "offline"

- platform: mqtt
  state_topic: 'home/ems-esp/heartbeat'
  name: 'ems_esp_uptime'
  unit_of_measurement: 's'
  value_template: '{{ value_json.uptime }}'
  qos: 1
  availability_topic: 'home/ems-esp/status'
  payload_available: "online"
  payload_not_available: "offline"

- platform: mqtt
  state_topic: 'home/ems-esp/heartbeat'
  name: 'ems_esp_version'
  value_template: '{{ value_json.version }}'
  qos: 1
  availability_topic: 'home/ems-esp/status'
  payload_available: "online"
  payload_not_available: "offline"

- platform: mqtt
  state_topic: 'home/ems-esp/heartbeat'
  name: 'ems_esp_mqtt_disconnects'
  value_template: '{{ value_json.MQTTdisconnects }}'
  qos: 1
  availability_topic: 'home/ems-esp/status'
  payload_available: "online"
  payload_not_available: "offline"

and in customize.yaml:

sensor.ems_esp_wifi:
  icon: mdi:wifi
  friendly_name: 'Wifi strength'

sensor.ems_esp_load:
  icon: mdi:chart-line
  friendly_name: 'System load'

sensor.ems_esp_freemem:
  icon: mdi:memory
  friendly_name: 'Free Memory'

sensor.ems_esp_uptime:
  icon: mdi:update
  friendly_name: 'Uptime'

sensor.ems_esp_version:
  icon: mdi:mini-sd
  friendly_name: 'Firmare Version'

sensor.ems_esp_mqtt_disconnects:
  icon: mdi:chart-line
  friendly_name: 'MQTT disconnects'

Activating one-time hot water charging DHW once (OneTimeWater)

switch.yaml

      one_time_water:
        friendly_name: OneTimeWater
        value_template: "{{ is_state('sensor.one_time_water', 'on') }}"
        turn_on:
          service: script.turn_on
          entity_id: script.one_time_water_on
        turn_off:
          service: script.turn_on
          entity_id: script.one_time_water_off

scripts.yaml

  one_time_water_on:
    sequence:
      - service: mqtt.publish
        data_template:
          topic: 'home/ems-esp/boiler_cmd_wwonetime'
          payload: '1'

  one_time_water_off:
    sequence:
      - service: mqtt.publish
        data_template:
          topic: 'home/ems-esp/boiler_cmd_wwonetime'
          payload: '0'

sensors.yaml

  - platform: mqtt
    state_topic: 'home/ems-esp/boiler_data'
    name: 'one_time_water'
    value_template: '{{ value_json.wWOnetime }}'
